Medical-grade UPS battery system (IEC 60601-1) with pure sine wave output for critical patient transport and mobile care. The Zopec UPS270 is lightweight, whisper-quiet and fully maintenance-free.

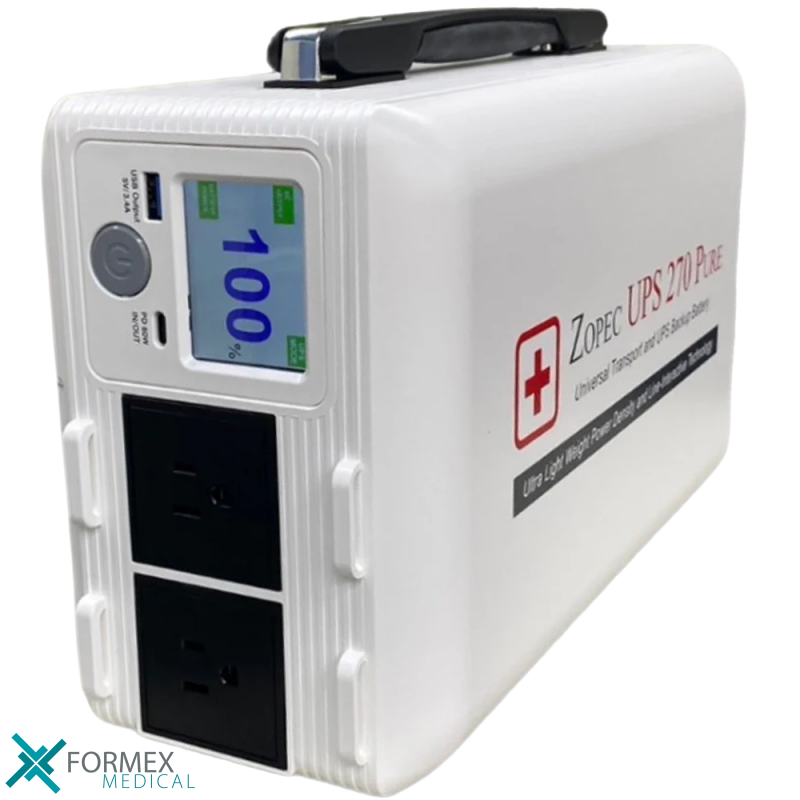

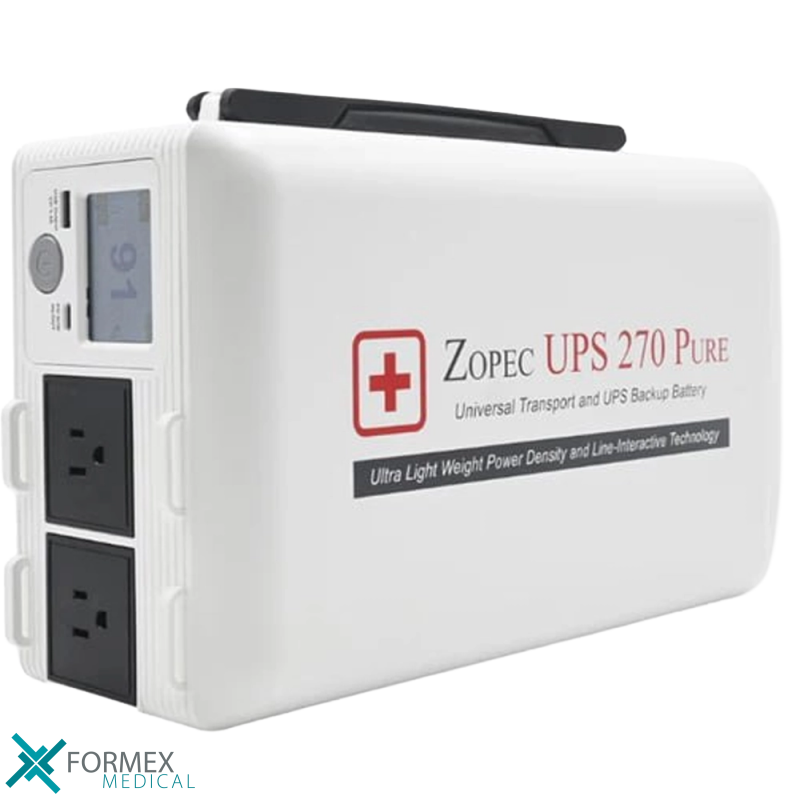

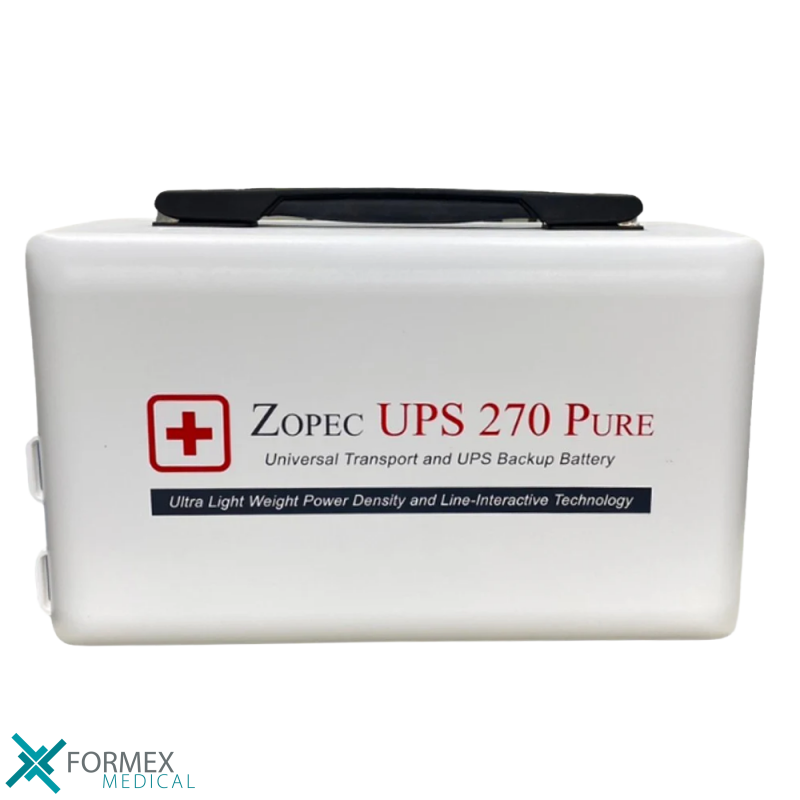

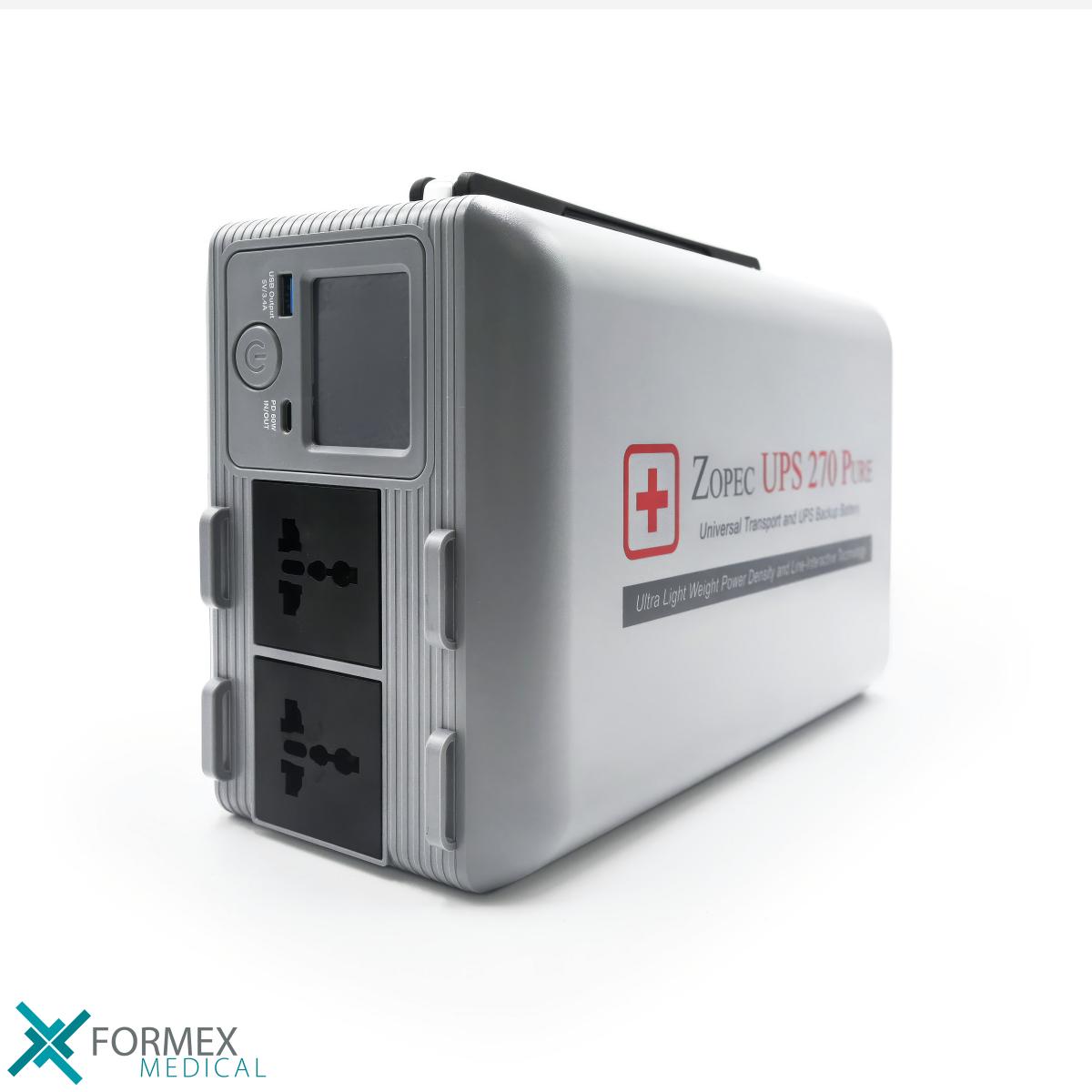

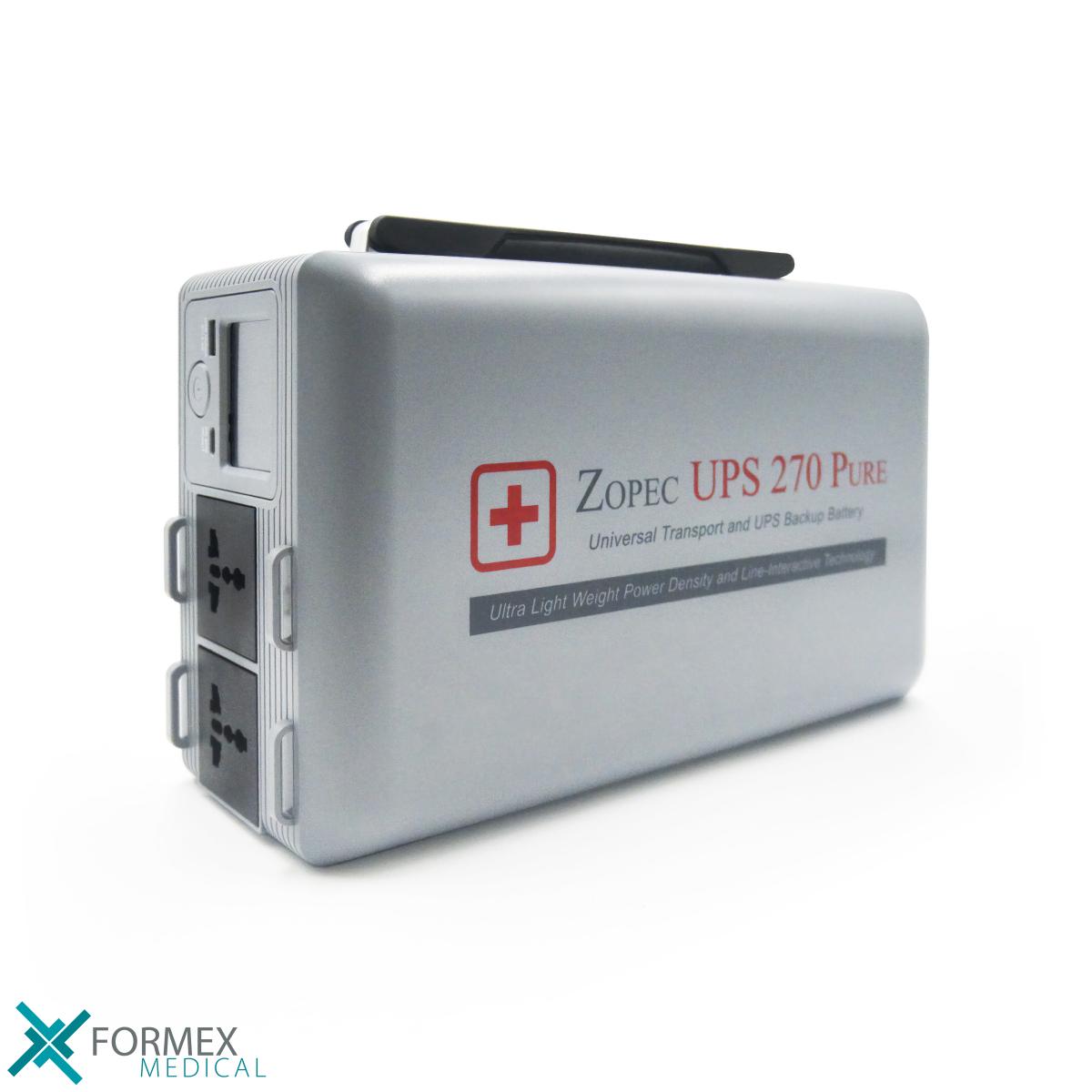

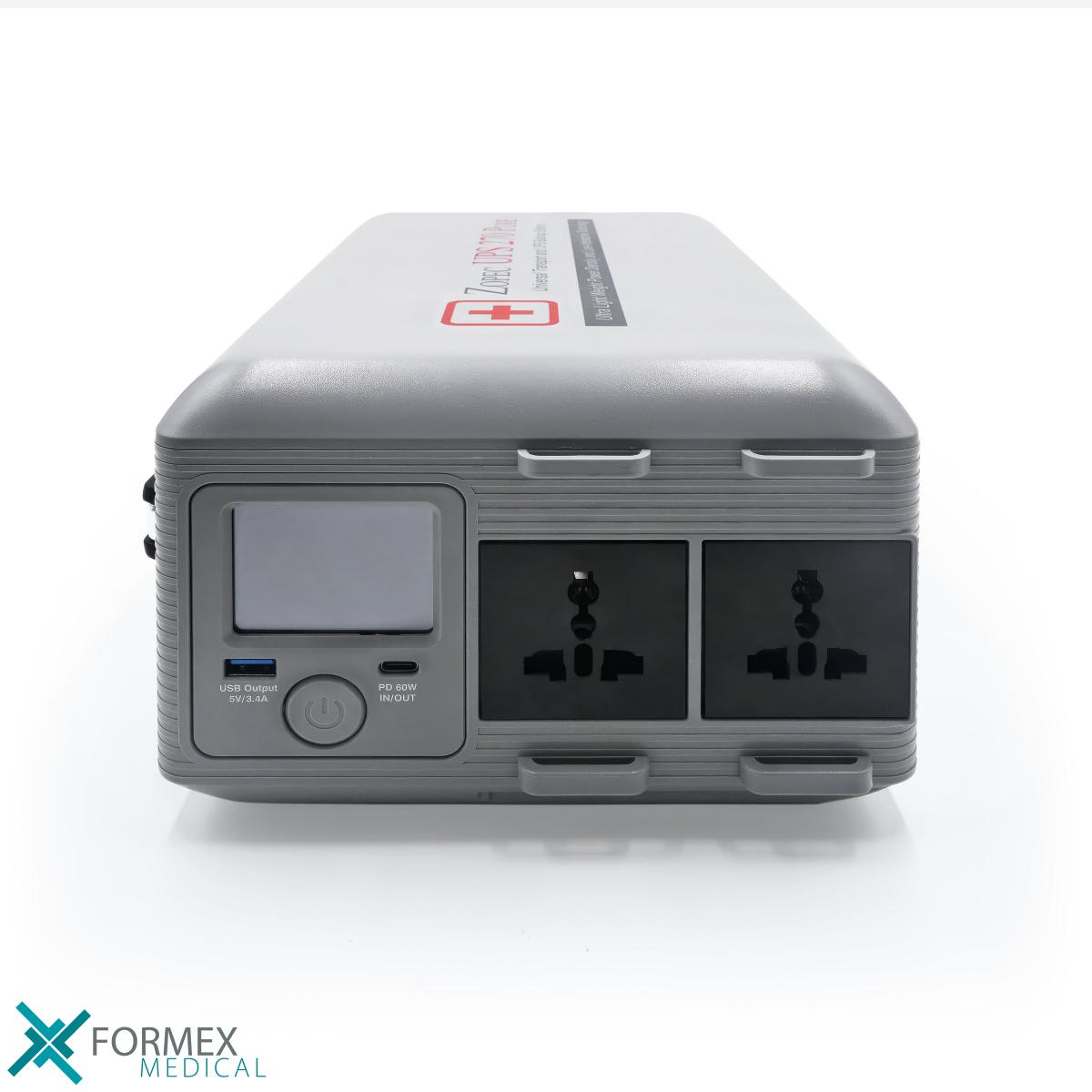

Zopec UPS270 Pure Battery System
The Zopec UPS270 is a versatile, medical-grade UPS battery system with pure sine wave output, specifically designed for medical equipment, patient transport and mobile care environments. This line-interactive medical UPS provides reliable emergency power in situations where power continuity is critical, including acute and post-acute patient mobility and point-of-care applications.
Key Features
- Medical grade compliance: Fully certified to IEC 60601-1, IEC 62133-2 and UL94 V0
- Pure sine wave output: Guaranteed compatibility with virtually all biomedical equipment
- Lightweight and compact: Only 6.8 kg (15 lbs) with dimensions of 12.5" × 7.5" × 5.0", ideal for mobile use
- Line-interactive technology: Connected equipment continues to operate while charging; prevents system resets during power interruptions
- Silent operation: Completely noiseless operation thanks to fanless solid-state cooling
- Battery status display: Digital capacity readout with three-stage alarm (20%, 10%, 5%)
- LED status indicators: Visible up to 6 feet — green (>25%), yellow (11–25%), red (≤10%)
- Multiple connections: Extra AC outlet and USB-A ports for simultaneous operation
- Unlimited series linking: Multiple UPS270 units can be linked for extended runtime without power interruption
- Protective silicone cover: IP22 rated for liquid and dust protection
- Easy disinfection: Resistant to hospital-grade cleaning agents
- Integrated mounting adapter: Standard bracket compatibility
- Maintenance-free: No preventive maintenance required throughout the full 8-year lifespan
Typical Applications
- Patient transport in hospitals
- Mobile medical carts
- Point-of-care equipment
- Medical monitoring systems
- Temporary emergency power supply
Device Compatibility
- Incubators (Draeger Babyleo, GE Giraffe, ATOM): ~1.5 hours at normal settings
- HFOV Oscillator 3100B: ~120 minutes at normal settings
- HFNC systems (F&P Airvo2/Massimo softFlow): 4.5-10 hours depending on temperature/flow
- Heated humidifiers: 4-9 hours depending on settings
- Blood gas analyzers: 6-9 hours
- Aerogen Nebulizer: compatible with simultaneous operation
Package Contents
- UPS 270 Pure Battery unit
- Mounting adapter
- Protective silicone cover
- User manual
- Power cord
- 10 red reusable zip ties
- 2 velcro straps
| Gewicht | 6,8 kg (15 lbs) |
| Afmetingen | 31,8 × 19,1 × 12,7 cm (12,5" × 7,5" × 5,0") |
| Output | Pure sinusgolf |
| Capaciteit | 270 Wh |
| Technologie | Line-interactief UPS |
| Aansluitingen | AC-uitgang, USB-A-poorten |
| Koeling | Solid-state (geen ventilator) |
| Bescherming | IP22 (siliconenhoes) |
| Batterij-alarmen | 20%, 10%, 5% |
| LED-indicatoren | Groen (>25%), Geel (11-25%), Rood (≤10%) |
| Serie-koppeling | Onbeperkt |
| Levensduur | 8 jaar |
| Garantie | 5 jaar |
| Spanning | 100-120V / 220-240V / 90-110V (afhankelijk van model) |
| Onderhoud | Onderhoudsvrij |
- IEC 60601-1 – Medische elektrische apparatuur, algemene eisen voor basisveiligheid en essentiële prestaties
- IEC 62133-2 – Veiligheidseisen voor draagbare afgedichte secundaire lithiumcellen en batterijen
- UL94 V0 – Brandbaarheidsnorm voor kunststoffen
| HF110UPS270 Pure | 100-120V (VS/Canada/Mexico/Taiwan) |
| HF110UPS270 Pure | 220-240V (Europa/Australië/Azië/Zuid-Amerika/Afrika) |
| HF110UPS270 Pure | 90-110V (Japan) |
